Short-circuiting set 1 kV

The 1 kV Short-circuiting set  is used in repair and maintenance for earthing and short-circuiting of LV cables (with voltage up to 1 kV.).

Short-circuit rating: 7,2 kA/0,2s

The shorting set is supplied with a protective case – plastic case.

Short-circuiting set type 2420 0

The set includes:

• grounding cable type 2420 2
• shorting wire harness type 2420 1
• plastic case (340 x 170 x 160 mm)
• weight: 1,75 kg

Grounding cable type 2420 2

• cable length: 2000 mm
• cable cross-section: 16 mm²
• 1 pc – grounding clamp adjustable 20 mm
• 1 pc – insulated clamp – plug (8 mm)
• designed for connection to the centre clamp of a three-phase shorting cable type 2420 1
• weight: 0,8 kg

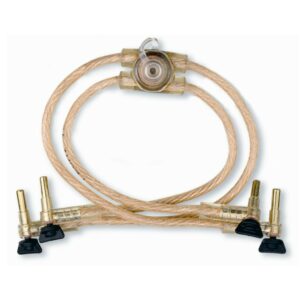

Three-phase shorting cable 2420 1

• cable length: 600 a 750 mm (300/375/300/375 mm)
• cable cross-section: 16 mm²
• 4 pcs – insulated clamp – plug (8 mm)
• weight: 0,5 kg

The set meets the following standards:

• EN 60900
• EN 61230
• EN 10020
• IEC 228 (class 6)
• IEC 1138
